Implement
21 - CONSTANT VELOCITY POWERLINE( ПОСТОЯННОЙ СКОРОСТЬЮ ПЕРЕДАЧИ)
SLIP CLUTCH(ФРИКЦИОННАЯ МУФТА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DC25979 | Latch | 1 | 278001 | - | |||||
| DC25979 | Latch | 1 | 279361 | - | ||||||
| 2 | CC25980 | Rod | 1 | 278001 | - | |||||
| CC25980 | Rod | 1 | 279361 | - | ||||||
| 3 | CC25981 | Latch | 1 | 278001 | - | |||||
| CC25981 | Latch | 1 | 279361 | - | ||||||
| 4 | CC25982 | Bolt | 1 | 278001 | - | |||||
| CC25982 | Bolt | 1 | 279361 | - | ||||||
| 5 | M87261 | Ball | 3 | 278001 | - | |||||
| M87261 | Ball | 3 | 279361 | - | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 6 | CC25984 | Spring | 1 | 278001 | - | |||||
| CC25984 | Spring | 1 | 279361 | - | ||||||
| 7 | CC25985 | Rack | 1 | 278001 | - | |||||
| CC25985 | Rack | 1 | 279361 | - | ||||||
| 8 | CC25986 | Washer | 1 | 278001 | - | |||||
| CC25986 | Washer | 1 | 279361 | - | ||||||
| 9 | CC25987 | Bushing | 1 | 278001 | - | |||||
| CC25987 | Bushing | 1 | 279361 | - | ||||||
| 10 | DC35018 | Spring Assembly | 1 | 278001 | - | |||||
| DC35018 | Spring Assembly | 1 | 279361 | - | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 11 | DC38275 | Disk | 4 | 278001 | - | |||||
| DC38275 | Disk | 4 | 279361 | - | ||||||
| 12 | CC25990 | Drive Disk | 1 | 278001 | - | |||||
| CC25990 | Drive Disk | 1 | 279361 | - | ||||||
| 13 | CC25991 | Drive Disk | 1 | 278001 | - | |||||
| CC25991 | Drive Disk | 1 | 279361 | - | ||||||
| 14 | DC217778 | Hub | 1 | 278001 | - | |||||
| DC217778 | Hub | 1 | 279361 | - | ||||||
| 15 | CC25993 | Washer | 1 | 278001 | - | |||||
| CC25993 | Washer | 1 | 279361 | - | ||||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS | ||
| 16 | CC25994 | Case | 1 | 278001 | - | |||||
| CC25994 | Case | 1 | 279361 | - | ||||||
| 17 | DC35199 | Slip Clutch | 1 | 278001 | - | |||||
| DC35199 | Slip Clutch | 1 | 279361 | - |

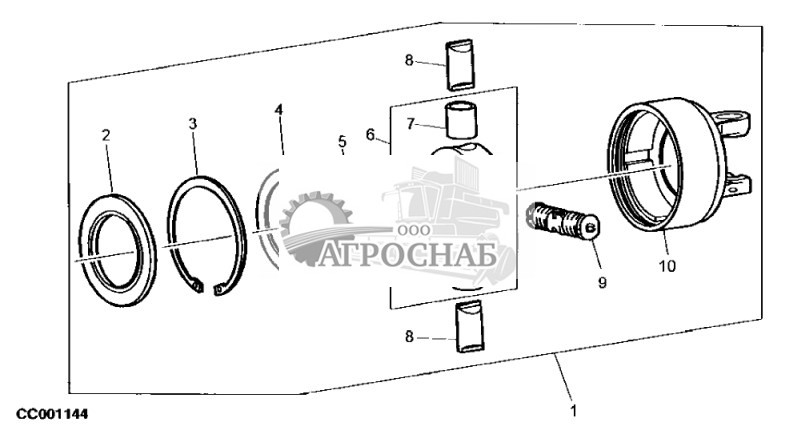

CAM-TYPE CUT OUT CLUTCH (RIGHT-HAND ROTATION)(CAMTYPE ВЫРЕЗАНЫ СЦЕПЛЕНИЕ ПРАВЫЙ ПОВОРОТ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | DC35828 | Slip Clutch | 1 | X | X | |||
| 2 | CC35834 | Seal | 1 | X | X | |||
| 3 | 40M7194 | Snap Ring | 1 | X | X | |||
| 4 | CC35836 | Washer | 1 | X | X | |||
| 5 | DC35829 | Half Clamp | 1 | X | X | |||
| 6 | DC35830 | Hub | 1 | X | X | |||
| 7 | CC35831 | Bushing | 2 | X | X | |||
| 8 | CC35832 | Cam | 2 | X | X | |||
| 9 | DC35833 | Compression Spring | 1 | X | X | |||
| 10 | CC35835 | Slip Clutch | 1 | X | X |

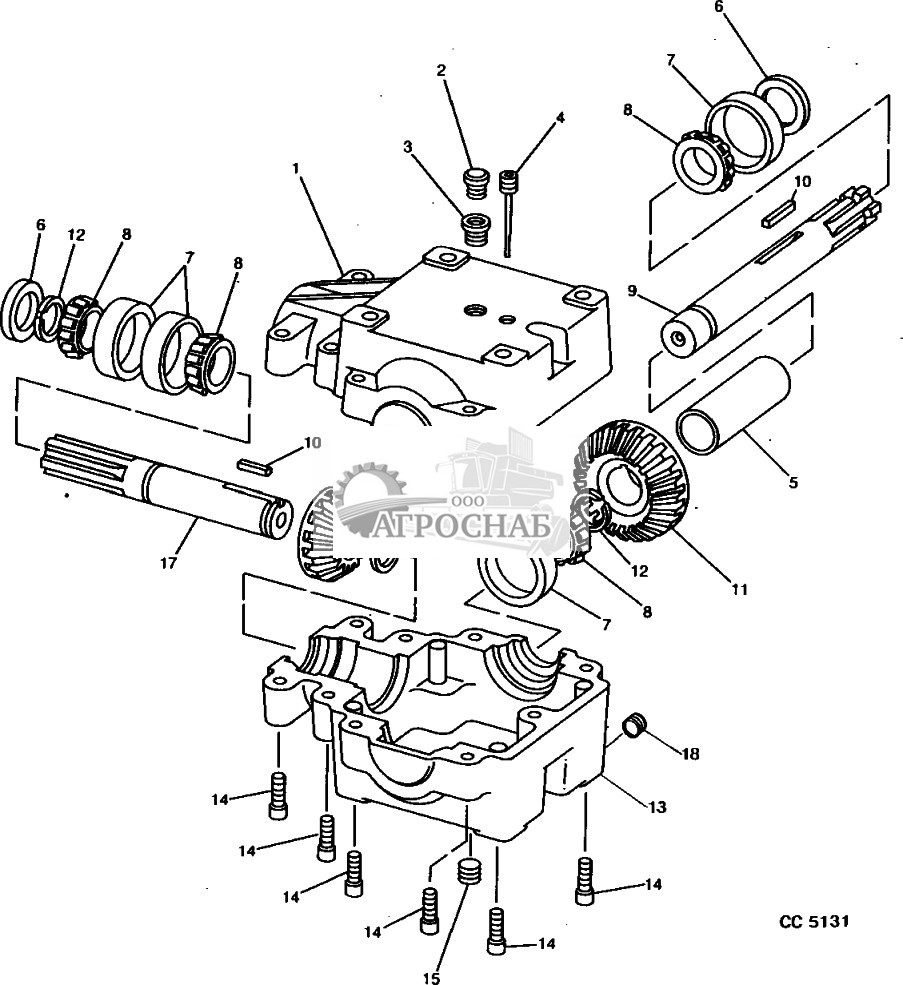

GEAR CASE (SUPERIOR)(ШЕСТЕРНЯ КОРПУС УЛУЧШЕННЫЙ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | E70868 | Gear Case | 1 | X | X | X | ||
| 2 | E14814 | Pressure Relief Fitting | 1 | X | X | X | ||
| 3 | 15H514 | Pipe Bushing | 1 | X | X | X | ||
| 4 | E70876 | Dipstick | 1 | X | X | X | ||
| 5 | E70875 | Spacer | 1 | X | X | X | ||
| 6 | AE47537 | Seal | 2 | X | X | X | ||
| 7 | JD7409 | Bearing Cup | 4 | X | X | X | ||
| 8 | JD7207 | Bearing Cone | 4 | X | X | X | ||
| 9 | E70873 | Shaft | 1 | X | X | X | ||
| 10 | N7477DN | Shaft Key | 2 | X | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
| 11 | E70871 | Bevel Gear | 1 | X | X | X | ||
| 12 | E70872 | Snap Ring | 2 | X | X | X | ||
| 13 | E70869 | Gear Case | 1 | X | X | X | ||
| 14 | 19H2871 | Screw | 9 | X | X | X | ||
| 15 | 15H624 | Pipe Plug | 1 | X | X | X | ||
| 16 | E70870 | Bevel Gear | 1 | X | X | X | ||
| 17 | E70874 | Shaft | 1 | X | X | X | ||
| 18 | T11903 | Pipe Plug | 1 | X | X | X |

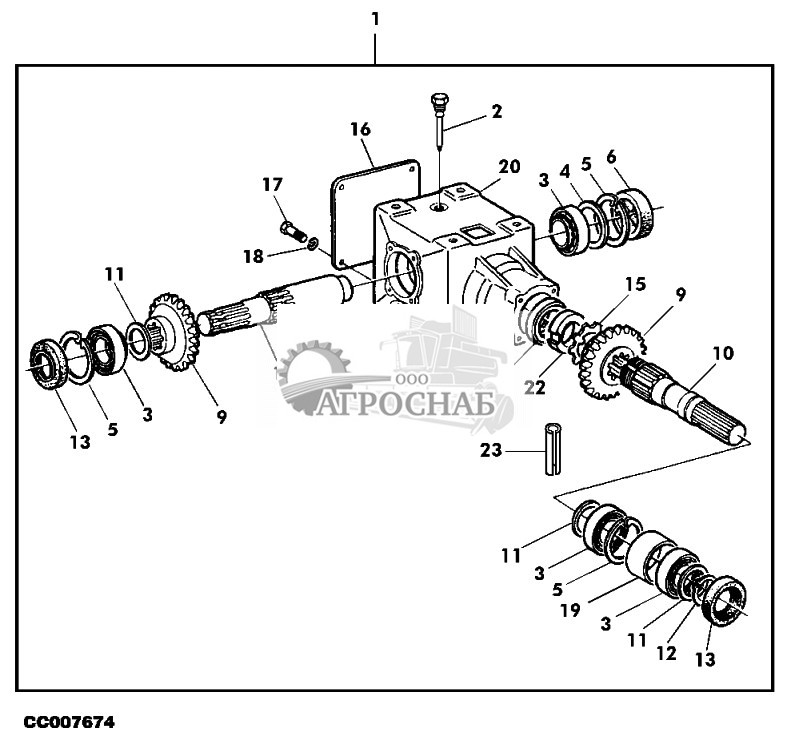

GEAR CASE (COMER)(СЛУЧАЙ ШЕСТЕРНИ ВСТРЕЧНОМУ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | AE49539 | Gear Case | 1 | X | X | X | ||
| 2 | AE46824 | Dipstick | 1 | X | X | X | ||
| 3 | AE46875 | Tapered Roller Bearing | 4 | X | X | X | ||
| 4 | L39402 | Shim | AR | X | X | X | ||
| 5 | 40M1870 | Snap Ring | 3 | X | X | X | ||
| 6 | AE46877 | Cap | 1 | X | X | X | ||
| 7 | 15H604 | Pipe Plug | 2 | X | X | X | ||
| 8 | AM1320T | Fitting | 1 | X | X | X | ||
| 9 | DC28216 | Bevel Gear | 1 | X | X | X | ||
| 10 | CE17004 | Shaft | 1 | X | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
| 11 | M1249T | Shim | AR | X | X | X | ||
| 12 | 40M7012 | Snap Ring | 1 | X | X | X | ||
| 13 | T19388 | Seal | 2 | X | X | X | ||
| 14 | CC25731 | Shaft | 1 | X | X | X | ||
| 15 | 12M7115 | Lock Plate | 1 | X | X | X | ||
| 16 | CC25743 | Cover | 1 | X | X | X | ||
| 17 | 19M7162 | Cap Screw | 4 | X | X | X | ||
| 18 | 12M7065 | Lock Washer | 4 | X | X | X | ||
| 19 | CC25735 | Spacer | 1 | X | X | X | ||
| 20 | E79652 | Gear Case | 1 | X | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 540 | 545 | 550 | REMARKS |
| 21 | 52M7016 | Nut | 1 | X | X | X | ||
| 22 | CE16626 | Nut | 1 | X | X | X | ||
| 23 | 34M7131 | Spring Pin | 1 | X | X | X |
